Foshan Davinci Technology Co., Ltd. hi China rama automatic spot welder siamtu leh supplier rintlak ber pawl a ni a, customized service pawh a support bawk. Khawngaihin kan factory atang hian hetah hian wholesale cheap automatic spot welder in stock ah hian kan hralh thei ang. Price consultation duh tan min rawn biak theih reng e.
Automatic Spot Welder hmanga siam a ni
Automatic spot welder hi high-precision welding control device a ni a, microcomputer hmanga control a ni a, welding environment hrang hrang atan a tha hle. A tha ber chu spatter ven nan a set thei a, welding current a titawp thei a, initial current ramp-up processing leh a hnu lama current heating process hmangin overheating a veng thei bawk. Spot welding machine zawng zawng tan a tha hle. Setting leh operation dan pawh a awlsam hle a, a awlsam hle bawk.
Machine pumpui power leh controller component lian ber berte chu imported components hmanga inzawmkhawm a ni a, hei hian precision sang tak leh durability sang tak a siam a ni. Entirnan, thyristor, CPU, etc.
2. DN-type precision electronic AC resistance automatic spot welding machine-a parameter hrang hrangte
|
Ke-operated inclined pressure chi hrang hrang |
Kea-operated vertical model a ni |
pneumatic type a ni |
|||||||
|
DN-16 a ni |
DN-20 a ni |
DN-25 a ni |
DN-25III hmanga siam a ni |
DN-35III hmanga siam a ni |
DN-25A hmanga siam a ni |
DN-35A hmanga siam a ni |
DN-40A hmanga siam a ni |
||
|
power supply voltage a ni (V2n) |
380V 50Hz a ni |
380V 50Hz a ni |
380V 50Hz a ni |
380V 50Hz a ni |
380V 50Hz a ni |
380V 50Hz a ni |
380V 50Hz a ni |
380V 50Hz a ni |
|
|
Load duty cycle(sn)-a chakna standard 1.1. |
20% |
20% |
20% |
20% |
20% |
20% |
20% |
20% |
|
|
Secondary no-load voltage(V2C) a awm lo. |
1.5-3.0V |
1.5-3.0V |
1.7-3.5V |
1.7-3.5V |
1.7-4.0V |
1.7-3.5V |
1.7-4.0V |
1.7-4.0V |
|
|
Secondary a sang ber short-circuit current(12CC) a ni. |
8.3KA a ni |
9KA a ni |
10.2KA a ni |
10.2KA a ni |
12.2KA a ni |
10.2KA a ni |
12.2KA a ni |
13.2KA a ni |
|
|
Electrode kut inkar hlat zawng E (mm) a ni. |
210 |
210 |
190 |
190 |
230 |
190 |
230 |
230 |
|
|
Electrode kut sei zawng L (mm) a ni. |
360 |
360 |
390 |
390 |
400 |
390 |
400 |
400 |
|
|
Electrode chakna sang ber(Fmax) 1.1. |
250N |
250N |
250N |
250N |
250N |
250N |
250N |
250N |
|
|
Supply pressure(pa) a ni. |
0.5MPA a ni |
0.5MPA a ni |
0.5MPA a ni |
0.5MPA a ni |
0.5MPA a ni |
||||
|
Tui lumna rated flow rate(Q) a ni. |
2L/min a ni |
2L/min a ni |
2L/min a ni |
2L/min a ni |
|||||
|
A hmanna huam chin (scope of Use). |
Carbon tlem steel, stainless steel(mm) hmanga siam a ni. |
Board-a thil awmte Min: 0.5+0.5 Max: 2+2 Wire hmanga thil siam a ni Min: 1+1 Max: 4+4 |
Board-a thil awmte Min: 0.5+0.5 Max: 2+2 Wire hmanga thil siam a ni Min: 1+1 Max: 4+4 |
Board-a thil awmte Min: 0.5+0.5 Max: 2.5+2.5 Wire hmanga thil siam a ni Min: 1+1 Max: 5+5 |
Board-a thil awmte Min: 0.5+0.5 Max: 2.5+2.5 Wire hmanga thil siam a ni Min: 1+1 Max: 5+5 |
Board-a thil awmte Min: 0.5+0.5 Max: 3+3 Wire hmanga thil siam a ni Min: 1+1 Max: 6+6 |
Board-a thil awmte Min: 0.5+0.5 Max: 2.5+2.5 Wire hmanga thil siam a ni Min: 1+1 Max: 5+5 |
Board-a thil awmte Min:0.5+0.5 tih a ni. Max:3+3 a ni.
Wire hmanga thil siam a ni Min:1+1 tih a ni. Max:6+6 a ni. |
|

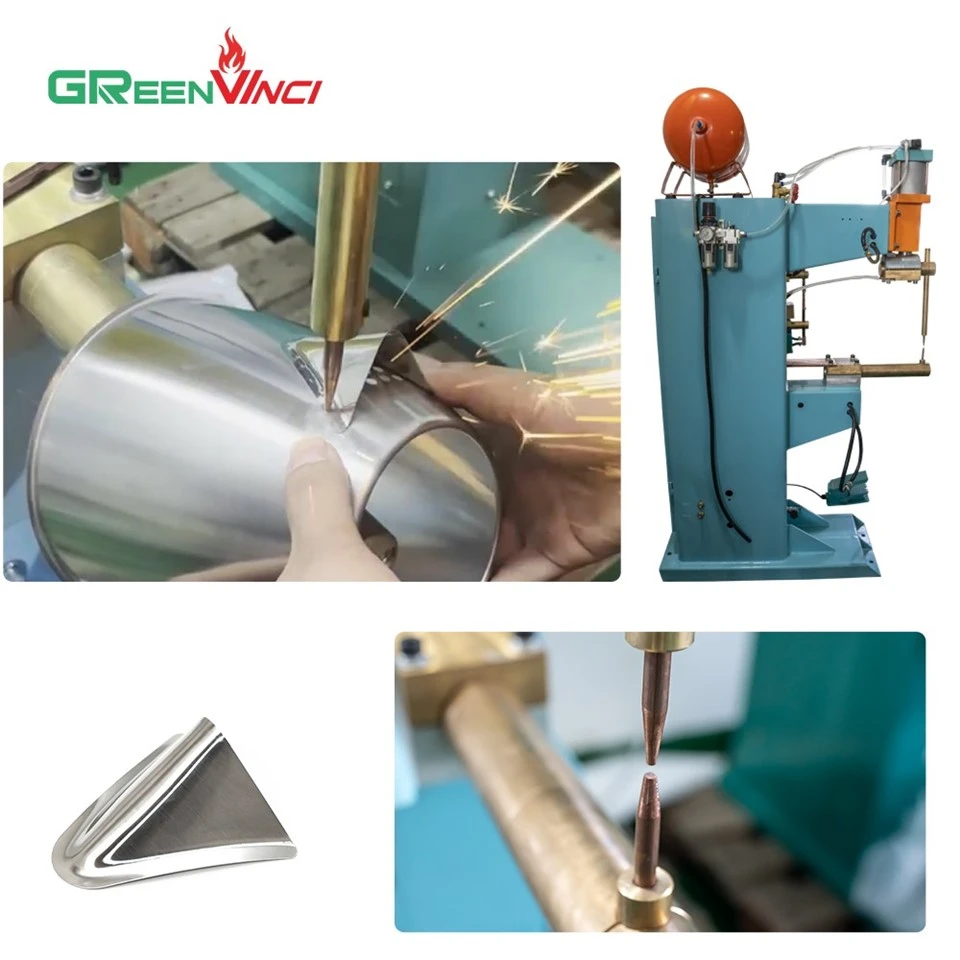

Kettle CKD (Completely Knocked Down) production line-ah chuan kettle spout weld nan pneumatic automatic spot welder kan hmang tlangpui. Pneumatic automatic spot welding machine te hi an hnathawh theih nan air supply an mamawh a ni. Kettle siamna atana thil pawimawh tak angin, spout-a spot welding quality hian a sealing performance, a durability leh a himna chu direct-in a hril a ni.
Kettle siamna line emaw kettle CKD machine emaw i duh chuan Davinci Machine hi zawhfiah theih a ni
Whatsapp/Wechat/Phone:+8618029293151 hmanga tih theih a ni.
Email:sales1@vincienegy.com ah hian thawn theih a ni.
Jenny Yao chuan a rawn ti a
Multi-Point Automatic Welding Machine hmanga siam a ni
hot tags .: automatic spot welder, China rama automatic spot welder siamtute, supplier te
